电子元件 Electronic Components

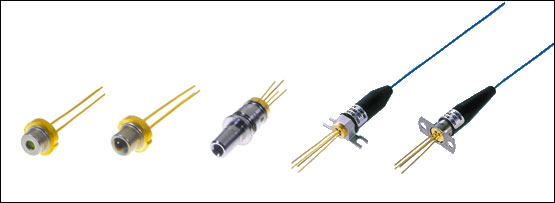

Optical Fiber Communications FP-LD

Part Number	Absolute Maximum Ratings		Electro-Optical Characteristics (TC = -40 to +85℃)				Applications	Packages	PDF Size
	TC (℃)	Tstg (℃)	Pf/Po (mW)	lC (nm)		s (nm)
	TC (℃)	Tstg (℃)	Typ.	Min.	Max.	Max.
NX5306 Series	-40 to +85	-40 to +85	5	1263	1360	2.5	<=1.25Gb/s:STM-1 (I-1, S-1.1, L-1.1), STM-4 (I-4, S-4.1)	4-pin CAN	81KB
NX5307 Series	-40 to +85	-40 to +85	10	1266	1360	2.5	<=2.5Gb/s:STM-16 (I-16)	4-pin CAN	82KB
NX5501EH	-20 to +85	-40 to +85	5	1480	1580	3.0	FTTH (fiber to the home)	4-pin CAN	54KB
NX7301BA-CC NX7301CA-CC	-40 to +85	-40 to +85	0.2	1263	1360	4.0	156 Mb/s: STM-1 (I-1, S-1.1)	Coaxial	70KB
NX7301BA-CC NX7301CA-CC	-40 to +85	-40 to +85	0.2	1263	1360	4.0	622 Mb/s: STM-4 (I-4)	Coaxial	70KB
NX7302BA-CC NX7302CA-CC	-40 to +85	-40 to +85	0.2	1274	1356	2.5	622 Mb/s: STM-4 (S-4.1)	Coaxial	69KB
NX7303BA-CC NX7303CA-CC	-40 to +85	-40 to +85	1.0	1263	1360	4.0	156 Mb/s: STM-1 (L-1.1)	Coaxial	69KB
NX7304BG-CC	-40 to +85	-40 to +85	2.0 (MIN.)	1260	1360	4.0	For fiberoptic communications	Coaxial	59KB
NX7312UA	-40 to +85	-40 to +85	0.2	1274	1356	2.5	156 Mb/s: STM-1 622 Mb/s: STM-4 (S-4.1)	TOSA	54KB
NX7313UA	-40 to +85	-40 to +85	0.6	1270	1355	4.0	1.25 Gb/s: GbE	TOSA	55KB
NX7314UA	-40 to +85	-40 to +85	1.0	1263	1360	3.0	156 Mb/s: STM-1 (LR)	TOSA	54KB
NX7315UA	-40 to +85	-40 to +85	0.6	1266	1360	4.0	STM-16 (I-16) SONET OC-48(SR)	TOSA	340KB

fiber_nx (15KB)

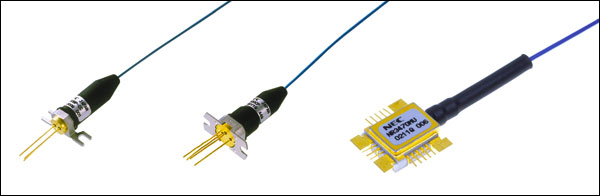

FP-LDs for OTDR

Part Number	Absolute Maximum Ratings		Electro-Optical Characteristics (TC = 25℃)				Applications	Packages	PDF Size
	TC (℃)	Tstg (℃)	lC (nm)	Pf (mW)		IFP* (mA)
	TC (℃)	Tstg (℃)	TYP.	MIN.	TYP.	IFP* (mA)
NX7327BF-AA	-20 to +60	-40 to +85	1310	110	180	1000	FP-LDs for OTDR	4-pin coax. with SMF	50KB
NX7328BF-AA	-20 to +60	-40 to +85	1310	70	110	400	FP-LDs for OTDR	4-pin coax. with SMF	46KB
NX7329BB-AA	-20 to +60	-40 to +85	1310	25	50	400	FP-LDs for OTDR	4-pin coax. with SMF	49KB
NX7361JB-BC	-20 to +65	-40 to +70	1310	150	-	1000	FP-LDs for OTDR	DIP with SMF	54KB
NX7526BF-AA	-20 to +60	-40 to +85	1550	95	145	1000	FP-LDs for OTDR	4-pin coax. with SMF	52KB
NX7527BF-AA	-20 to +60	-40 to +85	1550	120	145	1000	FP-LDs for OTDR	4-pin coax. with SMF	52KB
NX7528BF-AA	-20 to +60	-40 to +85	1550	60	80	400	FP-LDs for OTDR	4-pin coax. with SMF	47KB
NX7529BB-AA	-20 to +60	-40 to +85	1550	20	40	400	FP-LDs for OTDR	4-pin coax. with SMF	47KB
NX7561JB-BC	-20 to +65	-40 to +70	1550	135	-	1000	FP-LDs for OTDR	DIP with SMF	54KB
NX7661JB-BC	-20 to +65	-40 to +70	1625	120	-	1000	FP-LDs for OTDR	DIP with SMF	54KB

* PW : 10 ms, Duty : 1 %

EDFA Pumping FP-LD

Part Number	Absolute Maximum Ratings		Electro-Optical Characteristics (TC = 25℃)			Applications	Packages	PDF Size
	TC (℃)	Tstg (℃)	IF (mA)	Pf (mW)	lC (nm)
	TC (℃)	Tstg (℃)	Typ.	Min.	Typ.
NX7461LE-CC	20 to +70	-40 to +85	600	150	1480	EDFA	BFY	57KB
NX7462LE-CC	20 to +70	-40 to +85	550	120	1480	EDFA	BFY	63KB

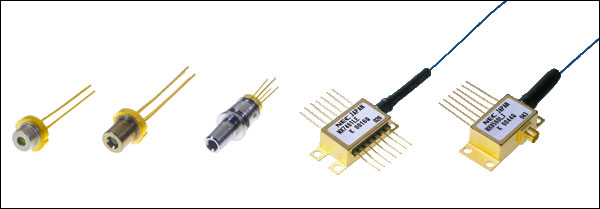

Optical Fiber Communications DFB-LD

Part Number	Absolute Maximum Ratings		Electro-Optical Characteristics (TC = 25℃)			Applications	Packages	PDF Size
	TC (℃)	Tstg (℃)	Ith (mA)	Pf/Po (mW)	lp (nm)
	TC (℃)	Tstg (℃)	Typ.	Min.	Typ.
NX6306 Series	-20 to +85	-40 to +85	10	5.0^*¹	1310	<=622Mb/s:STM-1 (I-1.1,S-1.1,L-1.1), STM-4 (I-4,S-4.1,L-4.1)	4-pin CAN	81KB
NX6307 Series	-20 to +85	-40 to +85	10	7.0^*¹	1310	<=2.5Gb/s:STM-16(L-16.1)	4-pin CAN	81KB
NX6504 Series	-10 to +85	-40 to +85	12	5.0	1550	156 Mb/s: STM-1 622 Mb/s: STM-4	4-pin CAN	95KB
NX8300BE-CC NX8300CE-CC	0 to +75	-40 to +85	15	2^*¹	1310	2.5 Gb/s: STM-16 (S-16.1, L-16.1)	Coaxial	76KB
NX8303BG-CC NX8303CG-CC	-10 to +85	-40 to +85	15	2^*¹	1310	622 Mb/s: STM-4 (L-4.1)	Coaxial	71KB
NX8304BE-CC NX8304CE-CC	-40 to +85	-40 to +85	15	2^*¹	1310	Optical Fiber Communications DFB-LD	Coaxial	72KB
NX8310UA	-40 to +85	-40 to +85	10	2^*¹	1310	622 Mb/s: STM-4 (L-4.1)	TOSA	47KB
NX8311UD	-20 to +85	-40 to +85	10	2^*¹	1310	2.5 Gb/s: STM-16 (L-16.1)	TOSA	47KB
NX8312UD	-20 to +85	-40 to +85	10	1^*¹	1310	2.5 Gb/s: STM-16 (S-16.1)	TOSA	47KB
NX8503BG-CC NX8503CG-CC	-10 to +85	-40 to +85	15	2^*¹	1550	156 Mb/s: STM-1 (L-1.2, L-1.3)	Coaxial	73KB
NX8503BG-CC NX8503CG-CC	-10 to +85	-40 to +85	15	2^*¹	1550	622 Mb/s: STM-4 (L-4.2, L-4.3)	Coaxial	73KB
NX8504BE-CC NX8504CE-CC	-10 to +85	-40 to +85	15	2^*¹	1550	622 Mb/s: STM-4 (L-4.2, L-4.3)	Coaxial	79KB
NX8562 Series	-20 to +70	-40 to +85	20	20	1550^*²	CW Light Source for external modulator	BFY	76KB
NX8563 Series	-20 to +70	-40 to +85	20	10	1550^*²	CW Light Source for external modulator	BFY	76KB
NX8570 Series	-20 to +70	-40 to +85	20	20	1550^*²	CW Light Source with l monitoring PD	BFY	139KB
NX8570SCxxxQ-BA	-20 to +70	-40 to +85	20	20	1550^*²	CW Light Source with l monitoring PD, 8 channel wavelength tunable capability for 50 GHz-spacing	BFY	126KB
NX8571 Series	-20 to +70	-40 to +85	20	10	1550^*²	CW Light Source with l monitoring PD	BFY	137KB
NX8571SCxxxQ-BA	-20 to +70	-40 to +85	20	10	1550^*²	CW Light Source with l monitoring PD, 8 channel wavelength tunable capability for 50 GHz-spacing	BFY	125KB

*1 Typ.

*2 Available for DWDM Wavelength based on ITU-T recommendation

EA Modulator Integrated DFB-LD

Part Number	Absolute Maximum Ratings		Electro-Optical Characteristics		Applications	Packages	PDF Size
	TC (℃)	Tstg (℃)	Pf^*¹ (mW)	lp (nm)
	TC (℃)	Tstg (℃)	Min.	Typ.
NX8560LJ Series	-20 to +70	-40 to +85	-3dBm	1550^*²	<=10 Gb/s: STM-64	BFY with GPO	99KB
NX8560LJ Series	-20 to +70	-40 to +85	-1dBm	1550	<=10 Gb/s: STM-64	BFY with GPO	99KB
NX8560MC Series	0 to +75	-40 to +85	-1dBm	1550	<=10 Gb/s: STM-64	19-pin mini BFY	78KB
NX8560MCS Series	0 to +75	-40 to +85	-5dBm	1550	<=10 Gb/s: STM-64	19-pin mini BFY	78KB
NX8560SJ Series	-5 to +70	-40 to +85	-3dBm	1550^*²	10 Gb/s: STM-64 with l monitoring PD	BFY with GPO	99KB
NX8564LE Series	-20 to +70	-40 to +85	-5dBm	1550^*²	2.5 Gb/s: STM-16, 360 km	BFY	110KB
NX8565LE Series	-20 to +70	-40 to +85	-5dBm	1550^*²	2.5 Gb/s: STM-16, 600 km	BFY	110KB
NX8566LE Series	-20 to +70	-40 to +85	0dBm	1550^*²	2.5 Gb/s: STM-16, 240 km	BFY	110KB
NX8567SA Series	-5 to +70	-40 to +85	-5dBm	1550^*²	2.5 Gb/s: STM-16, 600 km with l monitoring PD	BFY	99KB
NX8567SAM Series	-5 to +70	-40 to +85	-5dBm	1550^*²	2.5 Gb/s: STM-16, 360 km with l monitoring PD	BFY	99KB
NX8567SAS Series	-5 to +70	-40 to +85	0dBm	1550^*²	2.5 Gb/s: STM-16, 240 km with l monitoring PD	BFY	99KB

*1 Under modulation

*2 Available for DWDM Wavelength based on ITU-T recommendation

fiber_nx (19KB)

Detectors

InGaAs PIN-PD

Part Number	Absolute Maximum Ratings		Electro-Optical Characteristics (TC = 25℃)					Applications	Packages	PDF Size
	TC (℃)	Tstg (℃)	ID (nA)	fC (GHz)	S (A/W)		VR (V)
			Typ.	Min.	Typ.	@l (nm)	Typ.
NR3470MU-CC	-5 to +75	-40 to +85	5	7.5	1.00	1550	5	10Gb/s: STM-64	17-pin mini-butterfly PD with an Internal pre-amp	45KB
NR7500 Series	-40 to +85	-40 to +85	0.1	2.5	0.89	1310	5	2.5 Gb/s: STM-16	Coaxial	54KB
					0.94	1550
NR7800 Series	-40 to +85	-40 to +85	0.1	2.5	0.89	1310	5	<=622 Mb/s: STM-4, STM-1	Coaxial	55KB
					0.94	1550

InGaAs APD

Part Number	Absolute Maximum Ratings		Electro-Optical Characteristics (TC = 25℃)					Applications	Packages	PDF Size
	TC (℃)	Tstg (℃)	ID (nA)	fC (GHz)	S (A/W)		VBR (V)
			Typ.	Min.	Typ.	@l (nm)	Typ.
NR4270MU-CC	0 to +70	-40 to +85	-	7.0	0.63 (Min.)	1550	32 (Max.)	10Gb/s: STM-64	17-pin mini-butterfly APD with an Internal pre-amp	237KB
NR4500BP-CC NR4500CP-CC	0 to +85	-40 to +85	-	2.5^*	0.94	1310	60	2.5 Gb/s: STM-16	Coaxial module build in preamp	64KB
					0.96	1550
NR8300FP-CC	-40 to +85	-40 to +85	5	2.5	0.94	1310	70	For OTDR systems	Coaxial	57KB
					0.96	1550
NR8500 Series	-40 to +85	-40 to +85	7	1	0.94	1310	70	<=622 Mb/s: STM-4, STM-1	Coaxial	70KB
					0.96	1550
NR8501 Series	-40 to +85	-40 to +85	7	2.5	0.94	1310	60	2.5 Gb/s: STM-16	Coaxial	67KB
					0.96	1550

* Receiver Sensitivity is specified at 2.5 Gb/s

fiber_nr (16KB)
